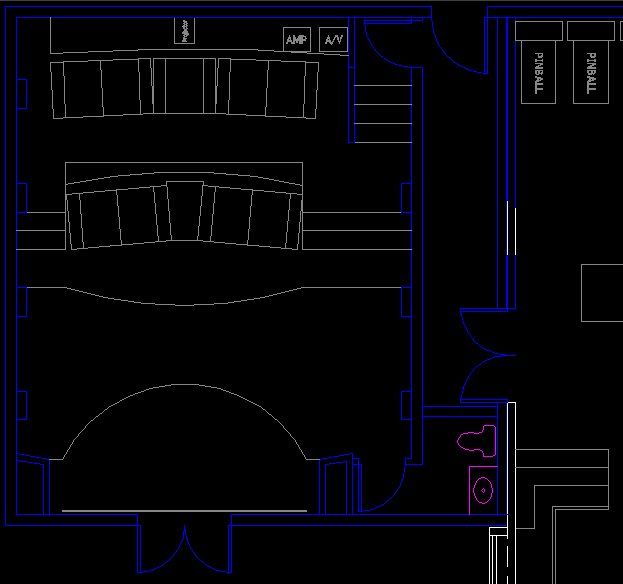

Room Layout Drawing
have begun the beginning stages of designing a dedicated
home theater. I like to call it 'The Cave' since
there will essentially be only one entrance/exit
and no windows. The room will be 21' by 26'6"
with a 10' ceiling and have a 4' hallway on one
side of it (not included in the room measurement).
The room will have a 91" x 162" screen
in it that will be wall mounted. On one side of
the room there will be a curtain and behind the
curtain there will be a door to the restroom. This
restroom will only be accessed from the Cave, so
it will have a 7" LCD monitor in it with stereo
speakers. That way you will not miss anything that
is happening in the 'big room.' I will have two
rows of seating that will be tiered for better viewing.
The first tier will be just over 19'6" from
the screen and the last row will be 25' from the
screen. This will allow for +18" behind the
second since you do not want to be seated on a back
wall of any theater. Building has been delayed until
Spring of 2007, just to busy this year with other
things in life.
